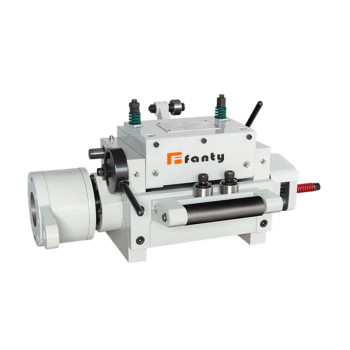

Mechanical Roll Feeder For Feeding 130mm Width Coil
- group name
- Roll Feeder
- Min Order
- 1 piece
- brand name
- FANTY - Stamping Automation Equipment Manufacturer
- model
- RF Series High Speed Mechanical Roll Feeder
- Nearest port for product export
- shekou, shenzhen
- Delivery clauses under the trade mode
- FOB, CIF, EXW
- Acceptable payment methods
- T/T
- update time
- Fri, 04 Sep 2026 13:03:56 GMT
Paramtents
Color Standard white (other colors are available)
Payment 30% T/T as deposit, rest against shipping
Certificate ISO, CE
Packging & Delivery
-
Min Order1 piece
Briefing
Detailed
FANTY · RF Series · Roll Feeder As one type punch press feeder, the High Speed Mechanical Roll Feeder is a specialized stamping feeder — widths of 130 mm, material from 0mm – 1.6 mm. Send us your coil size, material and press data, and our engineers will confirm the right mechanical roll feeder configuration for your line before you order. Application Typical parts and production lines that this mechanical roll feeder feeds or supports. Progressive-die parts for chassis, brackets and seat frames. Tiny pitch terminals, pins and shielding strips. Washing-machine drums, refrigerator shelves and metal cabinets. Chair bases, table legs and shelving brackets from coil strip. Why it works Strip and coil widths to 130 mm are supported across the model range. Handles material from 0mm – 1.6 mm, so one machine covers your light and heavy gauges. Matches press stroke rates up to 1,000 SPM while maintaining consistent pitch accuracy. Servo or mechanical indexing keeps strip advancement within tight tolerances for quality parts. Tool-less roller gap and feed-length adjustments reduce changeover time between jobs. Hardened rollers and sealed bearings are built for continuous production environments. Specifications Specifications are taken from the factory data sheet for this model. Tell us your coil or part data and our engineers will confirm the exact configuration before you order. Built by FANTY The RF Series is produced in the FANTY workshop alongside our full range of decoilers, straighteners, feeders and presses. Every unit goes through the same controlled build sequence before it is released for shipment. Material is guided into the feeder from the upstream coil line. Rollers or grippers clamp and advance the strip by the programmed pitch. The press stamps while the feeder holds position. Feeder releases and returns to the start position for the next cycle. FAQ Our feeders work with mechanical, hydraulic and servo presses. We match the feeder drive type and interface to your press model. Mechanical roll feeders reach up to 800 SPM. Servo feeders can exceed 1,000 SPM depending on strip length and thickness. Servo feeders achieve ±0.05 mm. Gripper feeders reach ±0.03 mm for thin materials. Roll feeders are typically ±0.1 mm. NC servo feeders handle 0.2–6.0 mm. Roll feeders suit 0.3–3.2 mm. Gripper feeders are ideal for 0.1–1.5 mm. Servo feeders use a touch-screen HMI with stored job recipes. Mechanical feeders synchronize through a press crank or flywheel linkage. Send us your material, coil or part data and press details. Our engineers will confirm the model, configuration and integration for your shop.Mechanical Roll Feeder For Feeding 130mm Width Coil
At a glance
Where This Mechanical Roll Feeder Works
Automotive stamping
Electronics connectors
Appliance parts
Metal furniture
Key Features of the RF Series
Widths up to 130 mm
Coil thickness 0mm – 1.6 mm
High-speed feeding
Precise pitch control
Quick-release setup
Durable drive train
RF Series Technical Specifications
Model
RF-138NS
Coil Width
130 mm
Coil Thickness
0mm – 1.6 mm
Max. Feeding length
80mm
Mold Line Height
60-120mm
Release Way
Mechanical
Assembled, Test-Run and Packed in Our Factory
Strip entry
Clamp & feed
Press stroke
Release & return
Mechanical Roll Feeder Questions, Answered
What press types are these feeders compatible with?
What is the maximum feeding speed?
What feeding accuracy can I expect?
What strip thickness range is supported?
How is the feeder controlled?
Ready to put the RF Series to work on your line?
