Hydraulic Uncoiler Machine for 3 Tons Steel Coil Unwinding
- group name
- Hydraulic Decoiler
- Min Order
- 1 piece
- brand name
- FANTY - Stamping Automation Equipment Manufacturer
- model
- MT Series Efficient Hydraulic Decoiler
- Nearest port for product export
- shekou, shenzhen
- Delivery clauses under the trade mode
- FOB, CIF, EXW
- Acceptable payment methods
- T/T
- update time
- Sat, 26 Sep 2026 09:11:12 GMT
Paramtents
Color Standard white (other colors are available)
Payment 30% T/T as deposit, rest against shipping
Certificate ISO, CE
Customized Service Yes
Packging & Delivery
-
Min Order1 piece
Briefing
Detailed
FANTY · MT Series · Hydraulic Decoiler
Hydraulic Uncoiler Machine for 3 Tons Steel Coil Unwinding
The Hydraulic Uncoiler Machine, is a steel coil handling equipment that achieves quick and effective expansion — widths of 400mm, material from 0.1–3.0mm, coils to 3 t.
Send us your coil size, material and press data, and our engineers will confirm the right hydraulic decoiler configuration for your line before you order.
At a glance
- 400mmmax width
- 0.1–3.0mmthickness range
- 3 tcoil capacity
- Ø1200mmmax coil OD
Application
Where This Hydraulic Decoiler Works
Typical parts and production lines that this hydraulic decoiler feeds or supports.
Automotive stamping
Structural brackets and frames from heavy steel coil.
Trailer & chassis parts
Long structural members fed from thick-gauge coil.
Appliance panels
Cabinet and housing blanks from mid-gauge strip.
Hardware & brackets
Angle brackets and joining plates in volume.
Why it works
Key Features of the MT Series
Widths up to 400mm
Strip and coil widths to 400mm are supported across the model range.
Coil thickness 0.1–3.0mm
Handles material from 0.1–3.0mm, so one machine covers your light and heavy gauges.
3 t coil capacity
Coils up to 3 t can be loaded, so the line runs longer between changes.
Coil OD up to Ø1200mm
Accepts coil outside diameters up to Ø1200mm without extra handling.
Hydraulic expansion
Cylinder-driven mandrel grips heavy coils quickly and uniformly.
Tension-controlled payout
Brake or drive control keeps strip tension steady into the straightener.
Specifications
MT Series Technical Specifications
| Model | MT-400F | MT-500F |
|---|---|---|
| Coil Width | 400mm | 500mm |
| Coil Thickness | 0.1–3.0mm | 0.1–3.0mm |
| Coil Loading Weight | 3 t | 3 t |
| Coil I.D. | Ø508mm | Ø508mm |
| Coil O.D. | Ø1200mm | Ø1200mm |
Specifications are taken from the factory data sheet for this model. Tell us your coil or part data and our engineers will confirm the exact configuration before you order.

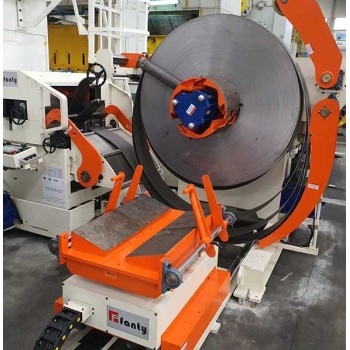

MT Series works at the customer's factory workshop.
Built by FANTY
Assembled, Test-Run and Packed in Our Factory
The MT Series is produced in the FANTY workshop alongside our full range of decoilers, straighteners, feeders and presses. Every unit goes through the same controlled build sequence before it is released for shipment.
- 01
Frame fabrication
Welded steel frame and mandrel supports are machined to size.
- 02
Hydraulic assembly
Expansion cylinder, drive motor and control panel are fitted and wired.
- 03
Load & run test
Each unit is tested with a full-weight coil to check expansion and payout.
- 04
Export packing
Machines are fixed and protected in wooden crates for shipping.
On the assembly floor before test.
Units in production at the factory.
Machines prepared for delivery.
FAQ
Hydraulic Decoiler Questions, Answered
How does hydraulic mandrel expansion work?
A hydraulic cylinder expands the mandrel segments outward to grip the coil inner diameter, giving uniform pressure that is safer and faster than hand-wheel expansion on heavy coils.
What coil weights can it handle?
Hydraulic decoilers are built for coils from roughly 3 to 20 tons. Send your coil weight, OD, ID and width and we will confirm the model and mandrel size.
Can it run with my existing straightener and feeder?
Yes. FANTY builds complete coil-fed press lines, so we can match this decoiler to your existing equipment or supply the full line.
What controls are included?
The control panel covers jog, forward/reverse and speed; heavier models add coil-car and pressing-arm options.
How is the machine shipped?
Each unit is run-tested with coil, then fixed in a wooden export crate. English manuals, wiring diagrams and a starter spares list are supplied.
Ready to put the MT Series to work on your line?
Send us your material, coil or part data and press details. Our engineers will confirm the model, configuration and integration for your shop.
