Servo Feeder Machine for 0.5~4.5mm Coil Thickness Handling
- group name
- NC Servo Feeder
- Min Order
- 1 piece
- brand name
- FANTY - Stamping Automation Equipment Manufacturer
- model
- RNC-B Series Servo Feeder Machine
- Nearest port for product export
- shekou, shenzhen
- Delivery clauses under the trade mode
- FOB, CIF, EXW
- Acceptable payment methods
- T/T
- update time
- Fri, 04 Sep 2026 13:03:36 GMT
Paramtents
Color Standard white (other colors are available)
Payment 30% T/T as deposit, rest against shipping
Suitable for Materials stainless steel, aluminum, and more
Packging & Delivery
-
Min Order1 piece
Briefing
Detailed
FANTY · RNC-B Series · NC Servo Feeder The Servo Feeder Machine is a coil feeder for handling steel coils with a thickness ranging from 0.5mm to 4.5mm — widths of 300 mm, material from 0.5–4.5 mm, ±0.1 mm accuracy. Send us your coil size, material and press data, and our engineers will confirm the right NC servo feeder configuration for your line before you order. Application Typical parts and production lines that this NC servo feeder feeds or supports. Progressive-die parts for chassis, brackets and seat frames. Tiny pitch terminals, pins and shielding strips. Washing-machine drums, refrigerator shelves and metal cabinets. Chair bases, table legs and shelving brackets from coil strip. Why it works Strip and coil widths to 300 mm are supported across the model range. Handles material from 0.5–4.5 mm, so one machine covers your light and heavy gauges. ±0.1 mm repeatability keeps progressive-die parts consistent part after part. Matches press stroke rates up to 1,000 SPM while maintaining consistent pitch accuracy. Servo or mechanical indexing keeps strip advancement within tight tolerances for quality parts. Tool-less roller gap and feed-length adjustments reduce changeover time between jobs. Specifications Specifications are taken from the factory data sheet for this model. Tell us your coil or part data and our engineers will confirm the exact configuration before you order. RNC-B Series assembly at the FANTY factory workshop. Built by FANTY The RNC-B Series is produced in the FANTY workshop alongside our full range of decoilers, straighteners, feeders and presses. Every unit goes through the same controlled build sequence before it is released for shipment. Material is guided into the feeder from the upstream coil line. Rollers or grippers clamp and advance the strip by the programmed pitch. The press stamps while the feeder holds position. Feeder releases and returns to the start position for the next cycle. On the assembly floor before test. Units in production at the factory. Machines prepared for delivery. FAQ Our feeders work with mechanical, hydraulic and servo presses. We match the feeder drive type and interface to your press model. Mechanical roll feeders reach up to 800 SPM. Servo feeders can exceed 1,000 SPM depending on strip length and thickness. Servo feeders achieve ±0.05 mm. Gripper feeders reach ±0.03 mm for thin materials. Roll feeders are typically ±0.1 mm. NC servo feeders handle 0.2–6.0 mm. Roll feeders suit 0.3–3.2 mm. Gripper feeders are ideal for 0.1–1.5 mm. Servo feeders use a touch-screen HMI with stored job recipes. Mechanical feeders synchronize through a press crank or flywheel linkage. Send us your material, coil or part data and press details. Our engineers will confirm the model, configuration and integration for your shop.Servo Feeder Machine for 0.5~4.5mm Coil Thickness Handling
At a glance
Where This NC Servo Feeder Works
Automotive stamping
Electronics connectors
Appliance parts
Metal furniture
Key Features of the RNC-B Series
Widths up to 300 mm
Coil thickness 0.5–4.5 mm
±0.1 mm accuracy
High-speed feeding
Precise pitch control
Quick-release setup
RNC-B Series Technical Specifications
Model RNC-300B RNC-400B RNC-500B RNC-600B Stock Width(mm) 300 400 500 600 Stock Thickness(mm) 0.5–4.5 0.5–4.5 0.5–4.5 0.5–4.5 Release Way Pneumatic Pneumatic Pneumatic Pneumatic Cylinder 1 pc 1 pc 2 pcs 2 pcs Roller Dia Φ90 mm Φ90 mm Φ90 mm Φ90 mm Accuracy ±0.1 mm ±0.1 mm ±0.1 mm ±0.1 mm

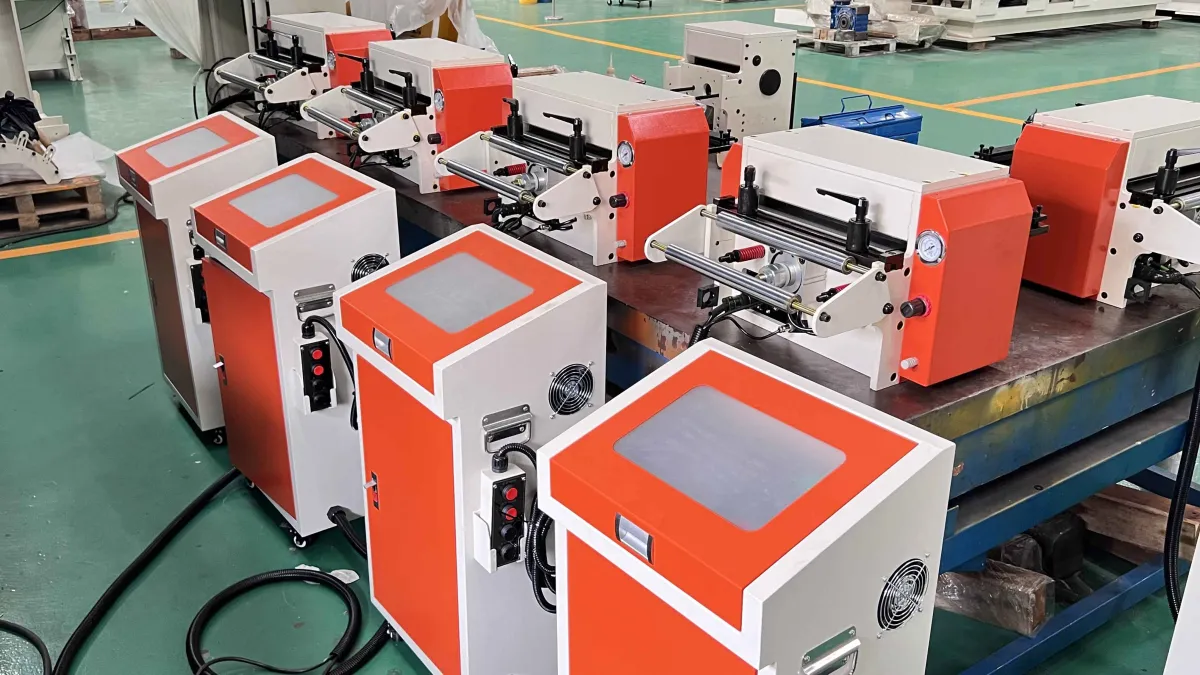

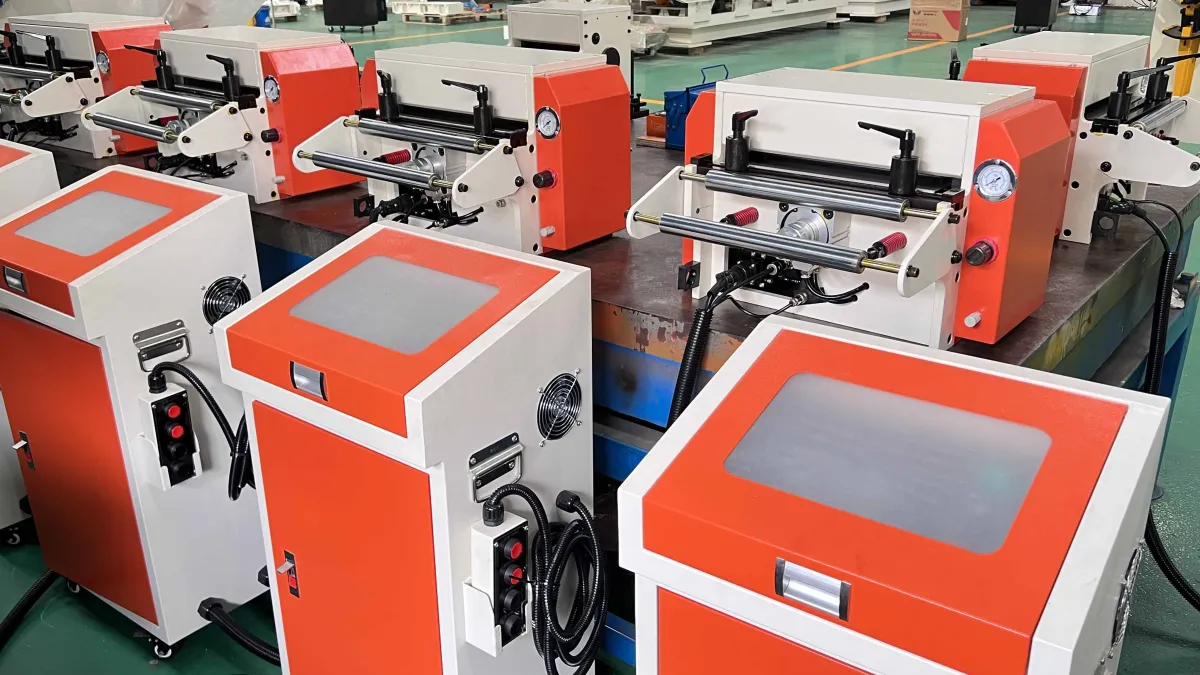

Assembled, Test-Run and Packed in Our Factory
Strip entry
Clamp & feed
Press stroke
Release & return
NC Servo Feeder Questions, Answered
What press types are these feeders compatible with?
What is the maximum feeding speed?
What feeding accuracy can I expect?
What strip thickness range is supported?
How is the feeder controlled?
Ready to put the RNC-B Series to work on your line?
