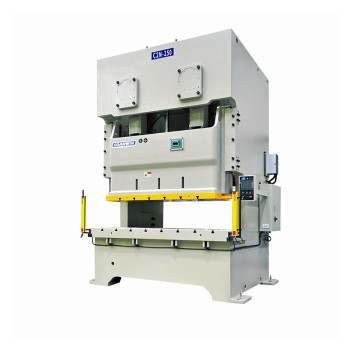

Double Crank C-Frame Punch Press for Precision Punching

group name: Precision Punching Machine

Min Order: 1 piece

brand name: FANTY -Steel Coil Handling Equipment Manufacturer

model: C2N Series High-Speed C-Frame Double Crank Press

Nearest port for product export: shekou, shenzhen

Delivery clauses under the trade mode: FOB, CIF, EXW

Acceptable payment methods: T/T

update time: Thu, 21 Nov 2024 16:49:29 GMT

contact supplier

Paramtents

Color Standard white (other colors are available)
Payment 30% T/T as deposit, rest against shipping
Factory Customized Service Yes

Packging & Delivery

Min Order1 piece

Briefing

This type punch press machine is a C-frame, dual crankshafts mechanical press for increased power and stability.

Detailed

Description of Double Crank C-Frame Punch Press

As a type of mechanical press, the Double Crank C-Frame Punch Press is a specialized machine tailored for precision punching applications. Its unique double crank mechanism enhances operational efficiency and accuracy, making it well-suited for demanding precision punching tasks. Equipped with high-quality press punches and punch press dies, this machine ensures consistent and precise punching results across various materials and thicknesses. The C-frame design provides stability and accessibility, facilitating easy tooling changes and maintenance. The punch press machine is engineered to deliver optimal performance while maintaining high levels of reliability and repeatability. As a key component in precision punching operations, the Double Crank C-Frame Punch Press enhances productivity and ensures consistent quality, making it an indispensable asset for precision manufacturing environments. Overall, the Double Crank C-Frame Punch Press offers a reliable and efficient solution for precision punching, combining durability, accuracy, and performance in one versatile machine.

Double Crank C-Frame Press for Precision Punching

C-Frame Double Crank Press is a type of mechanical press that features a sturdy C-shaped frame and two crankshafts for enhanced power and stability. It is widely used in metal forming and stamping operations to perform precise and repetitive punching, blanking, and bending tasks. The C-frame design provides easy access to the workpiece, allowing for efficient loading and unloading of materials. The double crank mechanism offers increased power transmission and stroke control, resulting in high-speed and accurate operations.

Features of Double Crank C-Frame Punch Press

● Nominal Pressure (Kn): 1100/1600/2000/2500/3150.

● Stroke Per Minute (s.p.m): Variable range, 35～65/50～100/30～55/40-85/20～45 etc.

● Fixed Stroke Per Minute (s.p.m): Variable range,45/80, 40/60, 35/50 etc.

● Die Height Adjustment (mm): 100/120

Specification of Double Crank C-Frame Punch Press

Model	C2N-110		C2N-160		C2N-200		C2N-250		C2N-315
	V	H	V	H	V	H	V	H	V	H
Nominal Pressure (Kn)	1100		1600		2000		2500		3150
Variable Stroke Per Minute (s.p.m)	35～65	50～100	30～55	40-85	20～45	35～70	20～35	30～60	20～35	30～60
Fixed Stroke Per Minute (s.p.m)	45	80	40	60	35	50	25	45	25	45
Stroke (mm)	180	110	200	130	250	150	200	100	250	150
Max. Die Height (mm)	400	435	450	485	500	550	550	605	550	605
Die Height Adjustment (mm)	100				120
Depth Of Throat (mm)	330		385		425		455		455
Slide Area (mm)	1400×500×70		1600×550×70		1850×650×95		2100×700×95		2100×700×95
Bolster Area (mm)	1800×650×130		2000×760×150		2400×840×170		2700×900×170		2700×900×180
Upper Die Weight (kg)	900		1200		1400		1600		1800
Motor (KW)	11×4		15×4		18.5×4		22×4		30×4

Double Crank C-Frame Press Stamping Products

Application of Double Crank C-Frame Punch Press

C-Frame Double Crank Presses are known for their robust construction, durability, and versatility, making them suitable for various industries such as automotive, appliance manufacturing, and general metal fabrication.

Company Details

Fanty machinery focus on the domestic market of punch press automation equipment production and sales from 2013. The field including domestic hardware industry , automotive stamping line, auto metal stamping part, saw blade production, high speed rotor and stator stamping and lamination, eyelet stamping line and so on.

We provide high quality uncoiling, leveling, feeding and punch equipment to help many local factories realize the importance of automation production, and more and more factories upgrade and improve their metal stamping line. Fanty machinery has exported machine to more than 30 countries. MORE

FAQ

Q: Can you provide references or customer testimonials for your double crank C-frame punch Press machines?

A: Yes, we can provide references and customer testimonials upon request. We have a satisfied customer base that can vouch for the performance and reliability of our double crank C-frame punch press machines.

Q: What is the expected lifespan of your double crank C-frame Punch Press machines?

A: The expected lifespan of our double crank C-frame punch press machines depends on various factors, including usage, maintenance, and operating conditions. With proper care and maintenance, our machines can serve you well for many years.

Q: Can your double crank C-frame Punch Press machines handle non-standard or irregularly shaped materials?

A: Yes, our double crank C-frame punch press machines are designed to handle non-standard or irregularly shaped materials. We can customize the tooling and provide solutions to accommodate your specific material requirements.

Q: Do you provide installation and training services at the customer's location?

A: Yes, we offer installation and training services at the customer's location. Our technicians will ensure proper machine setup and provide comprehensive training to your operators on-site.
