High-Precision Punch Press for Auto Part Stamping
- group name
- Precision Punching Machine
- Min Order
- 1 piece
- brand name
- FANTY - Stamping Automation Equipment Manufacturer
- model
- C1N Series High-Precision Punch Press
- Nearest port for product export
- shekou, shenzhen
- Delivery clauses under the trade mode
- FOB, CIF, EXW
- Acceptable payment methods
- T/T
- update time
- Tue, 15 Sep 2026 02:28:00 GMT
Paramtents
Color Standard white (other colors are available)
Payment 30% T/T as deposit, rest against shipping
Customized Service Support
Packging & Delivery
-
Min Order1 piece
Briefing
Detailed
FANTY · C1N Series · Precision Punching Machine The punch press machine is a high Precision Punch Press for Auto Part Stamping. The C1N Series is built by FANTY as a factory-direct precision punch press for coil-fed press lines — speeds of 120–180 spm, strokes of 130 mm. Send us your coil size, material and press data, and our engineers will confirm the right precision punch press configuration for your line before you order. Application Typical parts and production lines that this precision punch press feeds or supports. Progressive-die parts for body, chassis and powertrain components. Metal cabinets, drums, shelves and panels for home appliances. Shield cans, heat sinks, connector shells and brackets. Brackets, fasteners, hinges and structural metal parts. Why it works Running at 120–180 spm to keep pace with high-speed press cycles. Stroke range of 130 mm suits different part heights and die sets. Fitted with 2.2x6 drive as specified in the factory data sheet. Heavy-duty cast or welded frame minimizes deflection under load for consistent part quality. Eight-point or box-type guiding maintains die alignment and extends tool life. Hydraulic overload clutch protects the press and die from damage during misfeeds. Specifications Specifications are taken from the factory data sheet for this model. Tell us your coil or part data and our engineers will confirm the exact configuration before you order. C1N Series work table. Built by FANTY The C1N Series is produced in the FANTY workshop alongside our full range of decoilers, straighteners, feeders and presses. Every unit goes through the same controlled build sequence before it is released for shipment. Upper and lower dies are aligned and clamped securely. Feeder advances the strip to the next pitch position. Slide descends and the die forms, cuts or pierces the material. Parts drop through the die or are carried out by a conveyor. On the assembly floor before test. stock at the factory. products units in the stamping production. FAQ We supply presses from 25 tons to 1,000 tons in C-frame, H-frame and gantry configurations. High-speed models reach 800–1,200 SPM depending on stroke length and die complexity. Bolster and slide dimensions vary by tonnage. We provide a die-fit chart for each model to confirm compatibility. Standard features include two-hand buttons, light curtains, overload clutch and emergency stop. Additional guarding is available. Yes. Motor and control voltages are configured to your local standard before shipment. Send us your material, coil or part data and press details. Our engineers will confirm the model, configuration and integration for your shop.High-Precision Punch Press for Auto Part Stamping
At a glance
Where This Precision Punch Press Works
Automotive stamping
Appliance parts
Electronics hardware
Construction fittings
Key Features of the C1N Series
120–180 spm operation
130 mm stroke
2.2x6 motor
Rigid frame construction
Precision slide guiding
Overload protection
C1N Series Technical Specifications
Model C1N-15 C1N-25A C1N-25 C1N-35 C1N-45 C1N-60 C1N-80 Nominal Pressure (Kn) 150 250 250 350 450 600 800 Variable Stroke Per Minute (s.p.m) 120–180 60–140 60–140 130–200 40–120 110–180 40–100 Fixed Stroke Per Minute (s.p.m) 130 110 110 85 75 65 65 Stroke (mm) 60 80 60 30 70 40 80 Die Height (mm) 200 195 200 215 220 235 250 Slide Adjustment (mm) 50 50 50 55 60 75 80 Slide Area (mm) 300x230x50 360x250x50 400x300x60 500x360x70 560x420x70 560x420x70 560x420x70 Bolster Area (mm) 680x300x70 680x300x70 680x300x70 800x400x70 850x440x80 900x500x80 1000x550x90 Shank Hole (mm) φ38.1 φ38.1 φ38.1 φ38.1 φ38.1 φ50 φ50 slide Adjust Device Manual Operation Manual Operation Manual Operation Manual Operation Manual Operation Manual Operation Manual Operation Motor (KW) 2.2x6 4x4 4x4 4x4 5.5x4 5.5x4 7.5x4

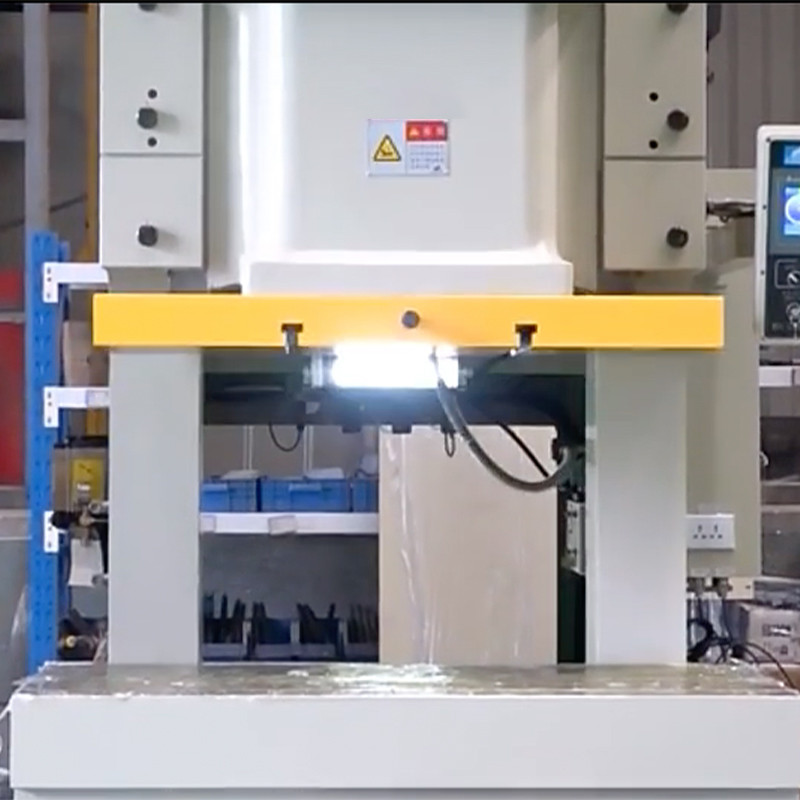

Assembled, Test-Run and Packed in Our Factory
Die mounting
Strip feeding
Stamp stroke
Part ejection
Precision Punch Press Questions, Answered
What tonnage range do you offer?
What is the maximum stamping speed?
What die sizes fit these presses?
What safety features are included?
Can the press voltage be customized?
Ready to put the C1N Series to work on your line?
