Precision Zig Zag Servo Feeder Machine for Circle Stamping Blanking Line
- group name
- Zigzag Feeder
- Min Order
- 1 piece
- brand name
- FANTY - Stamping Automation Equipment Manufacturer
- model
- NCP Series Precision Zig Zag Servo Feeder Machine
- Nearest port for product export
- shekou, shenzhen
- Delivery clauses under the trade mode
- FOB, CIF, EXW
- Acceptable payment methods
- T/T
- update time
- Thu, 10 Sep 2026 10:58:12 GMT
Paramtents
Color Standard white (other colors are available)
Payment 30% T/T as deposit, rest against shipping
Certificate ISO, CE
Customized Service Yes
Packging & Delivery
-
Min Order1 piece
Briefing
Detailed
FANTY · NCP Series · Zigzag Feeder the Precision Zigzag Servo Feeder Machine is a specialized coil feeder designed for circle stamping blanking lines — material from 0.2-2.0 mm, speeds of 20 m/min. Send us your coil size, material and press data, and our engineers will confirm the right zig-zag feeder configuration for your line before you order. Application Typical parts and production lines that this zig-zag feeder feeds or supports. Progressive-die parts for chassis, brackets and seat frames. Tiny pitch terminals, pins and shielding strips. Washing-machine drums, refrigerator shelves and metal cabinets. Chair bases, table legs and shelving brackets from coil strip. Why it works Handles material from 0.2-2.0 mm, so one machine covers your light and heavy gauges. Running at 20 m/min to keep pace with high-speed press cycles. Fitted with Yaskawa, Japan drive as specified in the factory data sheet. Matches press stroke rates up to 1,000 SPM while maintaining consistent pitch accuracy. Servo or mechanical indexing keeps strip advancement within tight tolerances for quality parts. Tool-less roller gap and feed-length adjustments reduce changeover time between jobs. Specifications Specifications are taken from the factory data sheet for this model. Tell us your coil or part data and our engineers will confirm the exact configuration before you order. NCP Series assembly at the FANTY factory workshop. Built by FANTY The NCP Series is produced in the FANTY workshop alongside our full range of decoilers, straighteners, feeders and presses. Every unit goes through the same controlled build sequence before it is released for shipment. Material is guided into the feeder from the upstream coil line. Rollers or grippers clamp and advance the strip by the programmed pitch. The press stamps while the feeder holds position. Feeder releases and returns to the start position for the next cycle. On the assembly floor before test. Units in production at the factory. Machines prepared for delivery. FAQ Our feeders work with mechanical, hydraulic and servo presses. We match the feeder drive type and interface to your press model. Mechanical roll feeders reach up to 800 SPM. Servo feeders can exceed 1,000 SPM depending on strip length and thickness. Servo feeders achieve ±0.05 mm. Gripper feeders reach ±0.03 mm for thin materials. Roll feeders are typically ±0.1 mm. NC servo feeders handle 0.2–6.0 mm. Roll feeders suit 0.3–3.2 mm. Gripper feeders are ideal for 0.1–1.5 mm. Servo feeders use a touch-screen HMI with stored job recipes. Mechanical feeders synchronize through a press crank or flywheel linkage. Send us your material, coil or part data and press details. Our engineers will confirm the model, configuration and integration for your shop.Precision Zig Zag Servo Feeder Machine for Circle Stamping Blanking Line
At a glance
Where This Zig-Zag Feeder Works
Automotive stamping
Electronics connectors
Appliance parts
Metal furniture
Key Features of the NCP Series
Coil thickness 0.2-2.0 mm
20 m/min operation
Yaskawa, Japan motor
High-speed feeding
Precise pitch control
Quick-release setup
NCP Series Technical Specifications
Model NCP-200 NCP-300 NCP-400 NCP-500 NCP-600 NCP-800 Coil Width 165° 140° 165° 140° 140° 140° Coil Thickness 0.2-2.0 mm 0.2-2.0 mm 0.2-2.0 mm 0.2-2.0 mm 0.2-2.0 mm 0.2-2.0 mm Release Pneumatic Type Releasing System Pneumatic Type Releasing System Pneumatic Type Releasing System Pneumatic Type Releasing System Pneumatic Type Releasing System Pneumatic Type Releasing System Roll Pressure Spring Type Spring Type Spring Type Spring Type Spring Type Spring Type Feed Roll Upper Roll 1pc, Bottom Roll 1pc Upper Roll 1pc, Bottom Roll 1pc Upper Roll 1pc, Bottom Roll 1pc Upper Roll 1pc, Bottom Roll 1pc Upper Roll 1pc, Bottom Roll 1pc Upper Roll 1pc, Bottom Roll 1pc Feed Length Max. 9999.99 mm Max. 9999.99 mm Max. 9999.99 mm Max. 9999.99 mm Max. 9999.99 mm Max. 9999.99 mm Speed Feeding Speed Max. 20 m/min, Zigzag Movement Speed Max. 30 m/min Feeding Speed Max. 20 m/min, Zigzag Movement Speed Max. 30 m/min Feeding Speed Max. 20 m/min, Zigzag Movement Speed Max. 30 m/min Feeding Speed Max. 20 m/min, Zigzag Movement Speed Max. 30 m/min Feeding Speed Max. 20 m/min, Zigzag Movement Speed Max. 30 m/min Feeding Speed Max. 20 m/min, Zigzag Movement Speed Max. 30 m/min Left Center Displacement 100mm 150mm 200mm 250mm 300mm 400mm Servo Motor Yaskawa, Japan Yaskawa, Japan Yaskawa, Japan Yaskawa, Japan Yaskawa, Japan Yaskawa, Japan Servo Drive Yaskawa, Japan Yaskawa, Japan Yaskawa, Japan Yaskawa, Japan Yaskawa, Japan Yaskawa, Japan PLC Mitsubishi, Japan Mitsubishi, Japan Mitsubishi, Japan Mitsubishi, Japan Mitsubishi, Japan Mitsubishi, Japan Touch Screen Weinview, Taiwan Weinview, Taiwan Weinview, Taiwan Weinview, Taiwan Weinview, Taiwan Weinview, Taiwan

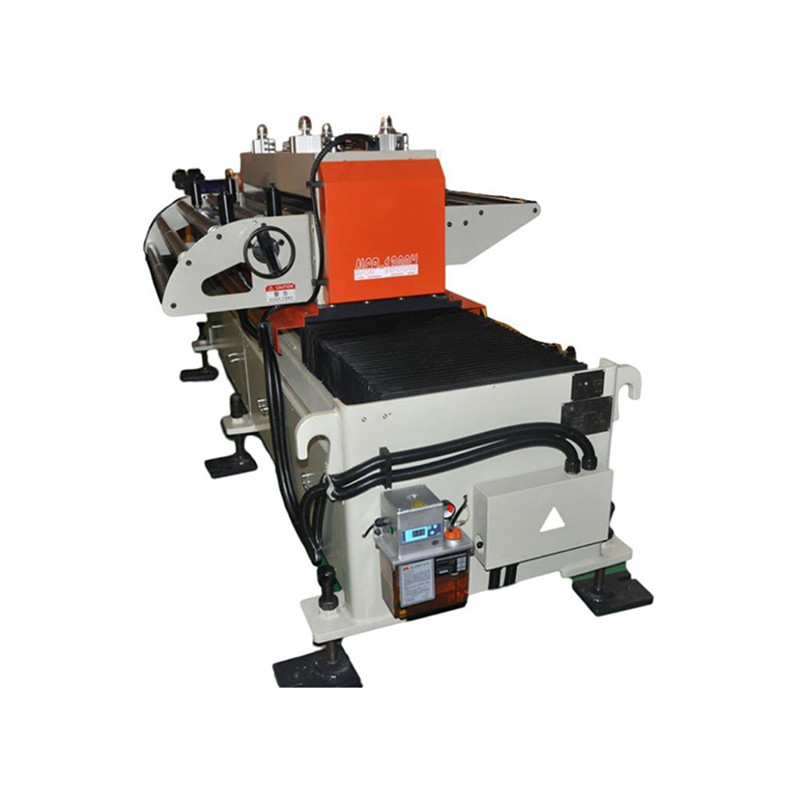

Assembled, Test-Run and Packed in Our Factory
Strip entry
Clamp & feed
Press stroke
Release & return
Zig-Zag Feeder Questions, Answered
What press types are these feeders compatible with?
What is the maximum feeding speed?
What feeding accuracy can I expect?
What strip thickness range is supported?
How is the feeder controlled?
Ready to put the NCP Series to work on your line?
